Installation Guide

1. Unbox and Prepare

Carefully unbox your Alumo Lighting Kit, including the LED Strip, Aluminium Channels, Cable Cover & Power Adapter.

The channels are supplied in sections of up to 1m in length, while the LED strip is a single continuous piece, precisely cut to your specified measurement.

2. Test Fit before Installation

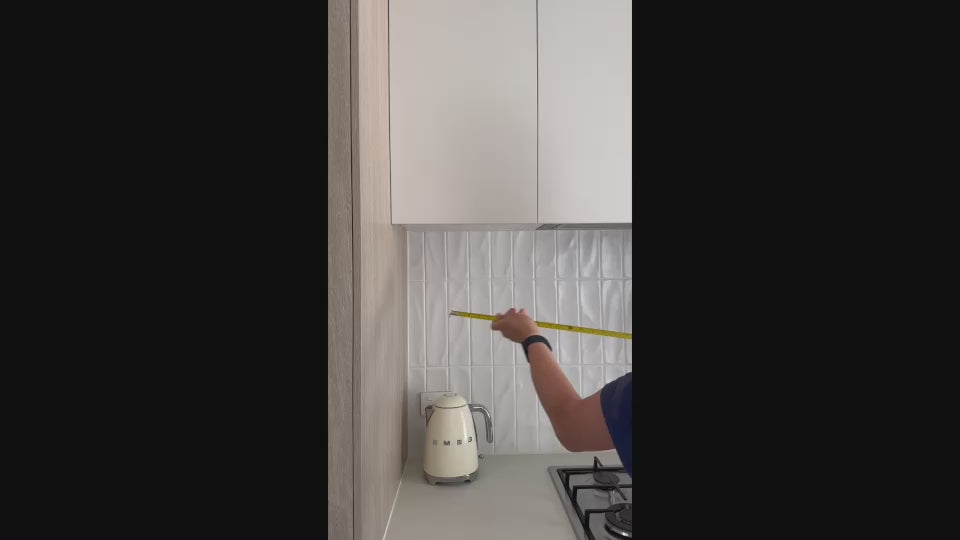

Before removing any adhesive, position the aluminium channels and LED strip beneath the intended installation area to confirm the fit and accuracy of your order.

This step ensures a flawless alignment before you begin permanent installation.

3. Mount the Aluminium Channels

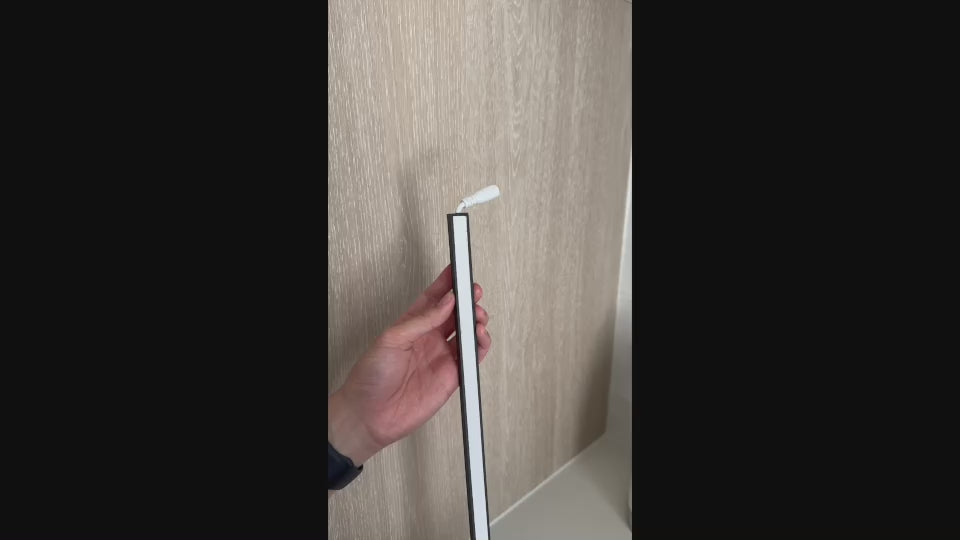

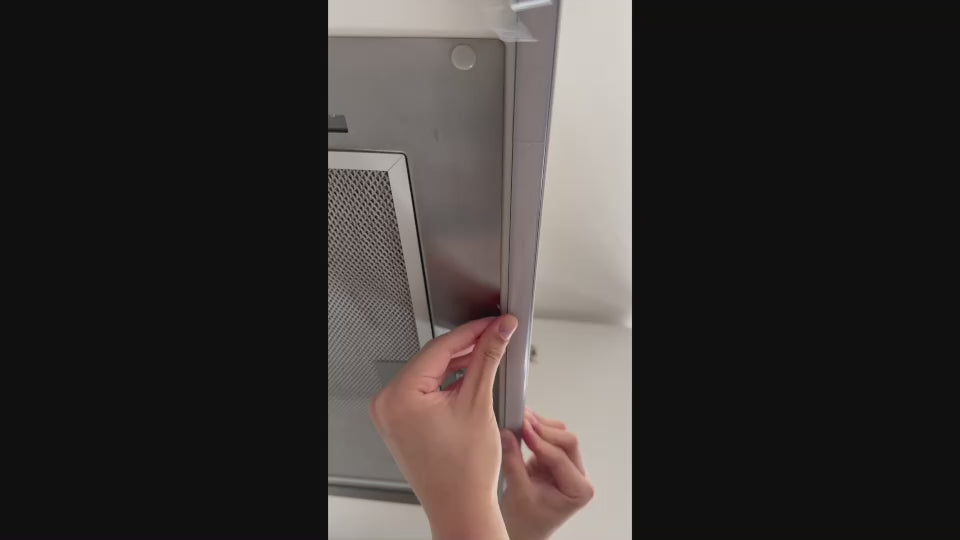

Clean the area thoroughly to remove any dirt or grease. Peel away the protective film from the pre-applied 3M adhesive and begin adhering each channel to the underside of your cabinetry.

Apply medium, even pressure for 10–15 seconds to secure firm contact before moving on to the next section.

For a clean, continuous appearance, ensure each channel is butted neatly against the previous one.

4. Install the LED Strip

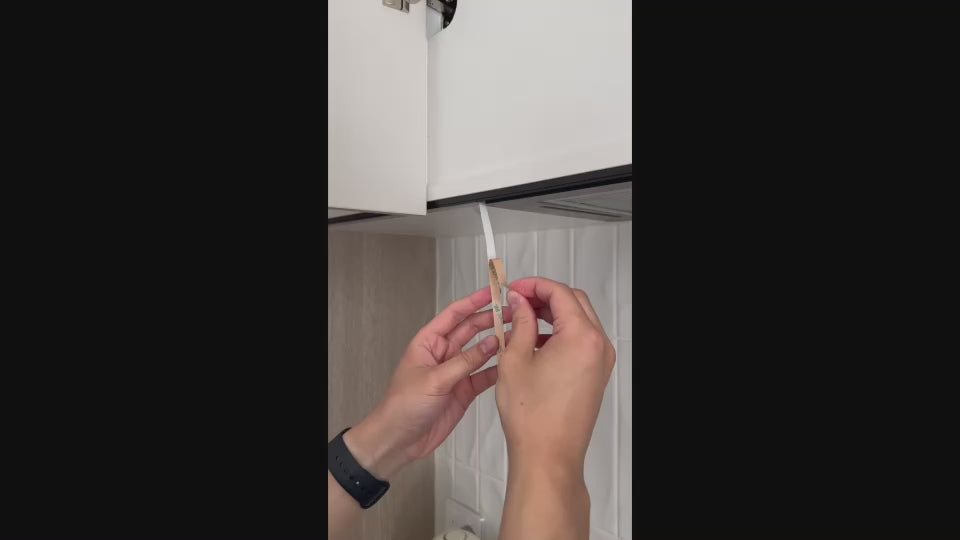

Once all channels are secured, remove the adhesive backing from the LED strip and carefully press it into place along the channel, maintaining consistent alignment throughout.

5. Attach the Diffusers

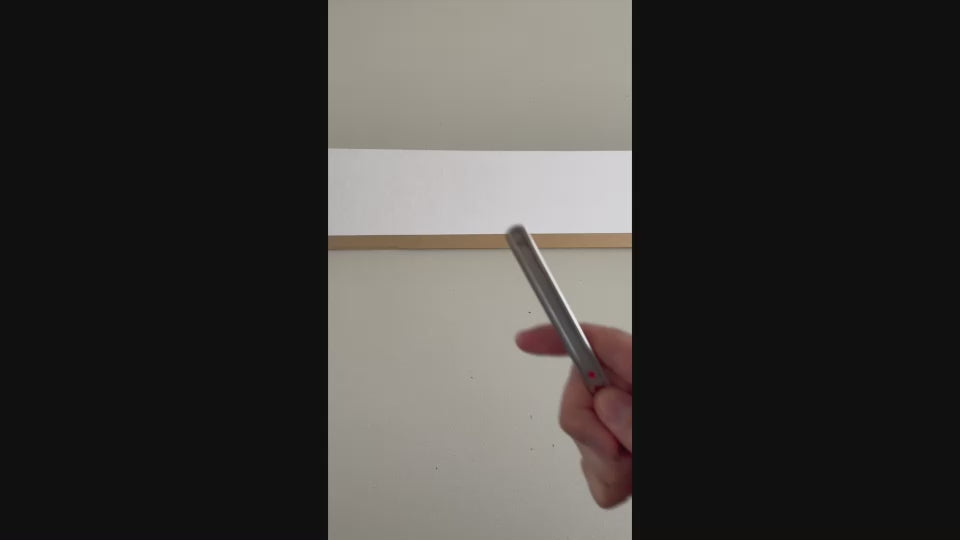

Snap the diffusers into position, working from left to right.

For a refined, seamless aesthetic, we recommend staggering the joins between the diffusers and the channels so they do not align.

6. Connect the Power Supply

Each kit includes a 1m Alumo Cable Cover. Measure the required length and cut the cover to size using a pair of sharp kitchen scissors.

Remove the adhesive backing and secure it neatly along the bench corner for a clean, professional finish.

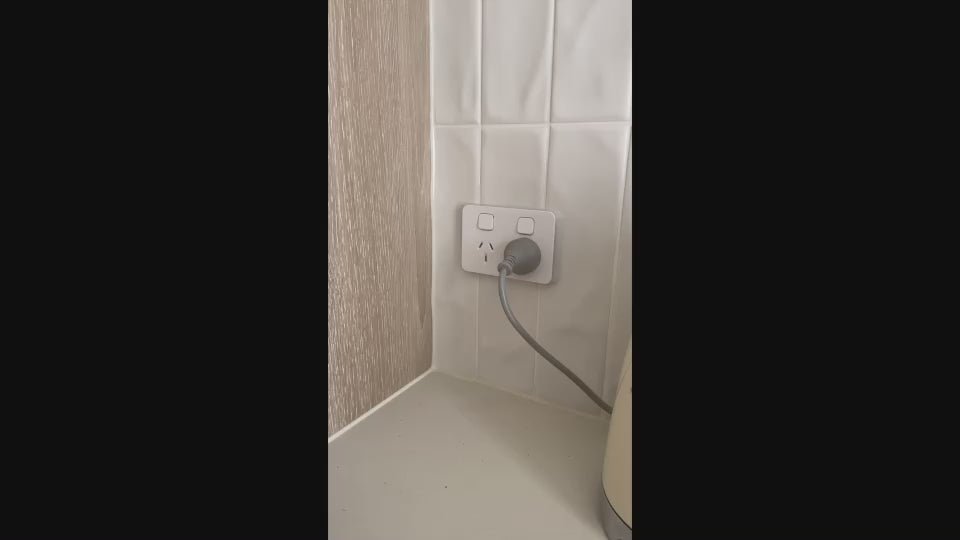

Route the power cable inside the cover and connect it to a nearby power outlet.

7. Test and Illuminate

Switch the power on and confirm the light operates as expected. Test the dimming function if applicable.

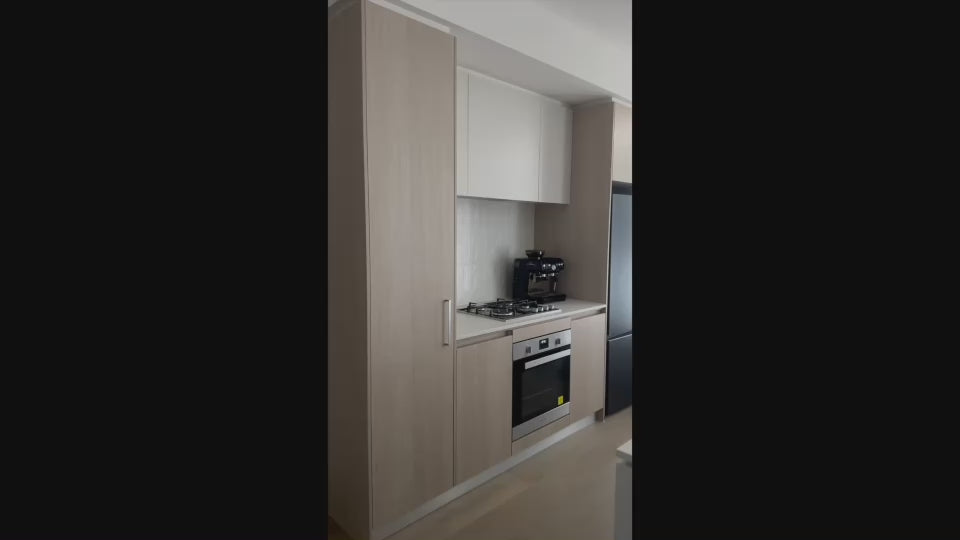

Step back and admire your transformed space!
